LIBRARY WALK PAVER SURVEY - OCTOBER 2022

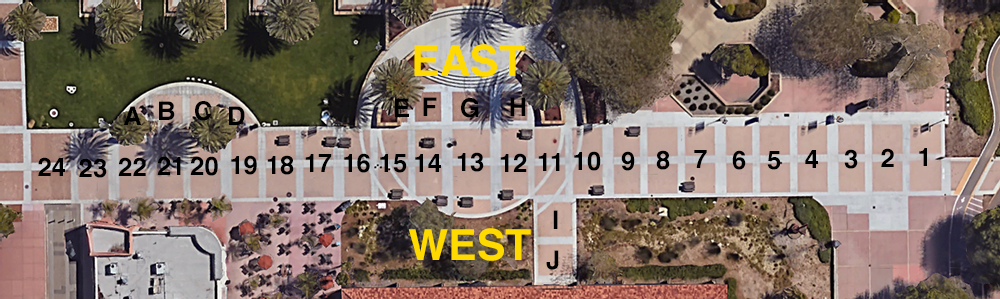

AREA 2 - NORTH |
||
| TO AREA 1 - SOUTH | TO AREA 3 - SQUARE | |
Eliminate trip hazards by re-setting selected pavers.
|
4-5 |
6-7 |
8-9 |
10+ |
| Measurements are in multiples of 1/16": 1/4" = 4, 3/8" = 6, 1/2" = 8, etc. |
S |
N |
E |
W |
||
| Section 1 | W | 8 | 4 | 8 | 6 |
| Section 1 | E | 0 | 5 | 2 | 7 |
| Section 2 | W | 5 | 7 | 7 | 6 |
| Section 2 | E | 1 | 5 | 0 | 5 |
| Section 3 | W | 4 | 5 | 6 | 5 |
| Section 3 | E | 2 | 3 | 0 | 3 |
| Section 4 | W | 2 | 4 | 5 | 4 |
| Section 4 | E | 1 | 5 | 3 | 4 |
| Section 5 | W | 2 | 6 | 6 | 2 |
| Section 5 | E | 4 | 5 | 2 | 6 |
| Section 6 | W | 4 | 6 | 7 | 1 |
| Section 6 | E | 6 | 9 | 0 | 4 |
| Section 7 | W | 6 | 5 | 8 | 3 |
| Section 7 | E | 4 | 9 | 1 | 7 |
| Section 8 | W | 4 | 3 | 6 | 3 |
| Section 8 | E | 4 | 4 | 4 | 10 |
| Section 9 | W | 5 | 2 | 7 | 2 |
| Section 9 | E | 6 | 6 | 0 | 10 |
| Section 10 | W | 0 | 2 | 8 | 1 |
| Section 10 | E | 9 | 6 | 12 | 11 |
| Section 11 | W | 5 | 4 | 7 | 6 |
| Section 11 | E | 7 | 4 | 3 | 4 |
| Section 12 | W | 6 | 3 | 6 | 4 |
| Section 12 | E | 5 | 6 | 3 | 3 |
| Section 13 | W | 4 | 6 | 3 | 0 |
| Section 13 | E | 6 | 6 | 5 | 5 |
| Section 14 | W | 6 | 7 | 4 | 2 |
| Section 14 | E | 6 | 4 | 3 | 5 |
| Section 15 | W | 4 | 6 | 13 | 3 |
| Section 15 | E | 8 | 4 | 0 | 7 |
| Section 16 | W | 5 | 8 | 9 | 3 |
| Section 16 | E | 7 | 5 | 0 | 7 |
| Section 17 | W | 2 | 2 | 4 | 3 |
| Section 17 | E | 3 | 5 | 5 | 3 |
| Section 18 | W | 7 | 4 | 4 | 4 |
| Section 18 | E | 7 | 3 | 2 | 3 |
| Section 19 | W | 4 | 8 | 7 | 4 |
| Section 19 | E | 5 | 16 | 6 | 4 |
| Section 20 | W | 6 | 8 | 6 | 8 |
| Section 20 | E | 10 | 7 | 4 | 6 |
| Section 21 | W | 5 | 8 | 5 | 2 |
| Section 21 | E | 5 | 1 | 6 | 3 |
| Section 22 | W | 4 | 8 | 7 | 5 |
| Section 22 | E | 4 | 6 | 0 | 6 |
| Section 23 | W | 5 | 6 | 8 | 9 |
| Section 23 | E | 4 | 5 | 3 | 6 |
| Section 24 | W | 1 | 6 | 2 | 0 |
| Section 24 | E | 8 | 1 | 0 | 3 |
| Section A | 8 | 0 | 0 | 8 | |
| Section B | 2 | 7 | 0 | 7 | |
| Section C | 6 | 0 | 2 | 5 | |
| Section D | 2 | 6 | 6 | 5 | |
| Section E | 0 | - | - | 0 | |
| Section F | 3 | 2 | 0 | 1 | |
| Section G | 6 | 0 | 0 | 0 | |
| Section H | 1 | 3 | 0 | 0 | |
| Section I | 6 | 5 | 6 | 2 | |
| Section J | 4 | 4 | 5 | 2 | |
Survey: October 1, 2022
